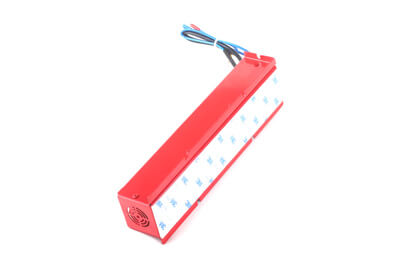

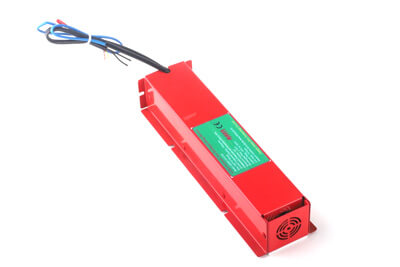

This 100G auto fire suppression system is composed of a highly efficient aerosol fire suppressant.
Its main components include:
- Red casing with carbon steel materials, and with red paint.
- Thermal cord (automatic).
- Electrical activation wire.
- Pressure switch wire.
- Coolant.
- Aerosol compound 100 grams.
- Shell insulation wadding.
- Spray nozzle.
When an instantaneous current of approximately 0.5 amperes is applied to the fire extinguisher, or when the thermosensitive wire (thermal cord) detects temperatures exceeding 170 degrees Celsius (or encounters open flames), the extinguisher is activated to perform its fire-suppression function. Subsequently, feedback signals indicating the extinguishing action are transmitted to the associated monitoring host (alarm control panel).
100 grams of aerosol fire extinguishing agent can cover one cubic meter of enclosed space. It is currently primarily installed in energy storage cabinets, but may also be applied to standard enclosed cabinets as required.
Owing to the requirements of energy storage development, numerous energy storage cabinets necessitate this product as a fire protection solution. Subsequently, the energy storage PACK within the cabinets requires the installation of another model named QRR0.012G/S/SA (or equivalent).
In short, this product represents an excellent solution for energy storage cabinet fire protection, regardless of whether it contains 100g, 200g, or 300g of extinguishing agent.
One might imagine that it could become the primary fire extinguisher for future energy storage cabinets, potentially leading the way in the research, development, and innovation of energy storage fire extinguishers.
Main Characteristics and Specifications of the 100G auto fire suppression system
Below, we shall outline the performance characteristics and specifications of this 100-gram auto fire suppression system device:
- Product attributes: Aerosol fire extinguisher device.
- Industry sector: Safety product.
- Model number: AW-QRR0.1G/S/SA.
- Product dimension: 210*72*46 mm.
- Aerosol compound releasing time: less than 30 seconds.
- Aerosol quality: 100 grams.
- Protective volume for enclosure space: 1 cubic meter.
- Shell temperature after releasing: less than 200℃.
- Certificates: CE and ISO.
- OEM and ODM service: Acceptable.
- Labeling service: Acceptable.
- Main application: energy storage cabinet, etc.
- Storage temperature: -40℃ to +40℃.
- Ambient Temperature: -40℃ to +95℃.
- Relative humidity: 98% non-condensing.
- Standard: UL, ISO, GA499.1-2010.
Should you or any of your acquaintances be interested in this product, please do not hesitate to contact us at any time.
We shall provide you with a one-stop service.

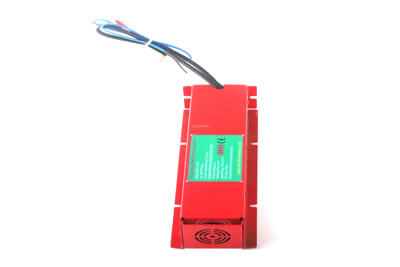

This product features a square shape, a characteristic that enables it to be installed effectively within energy storage cabinets.
It can be mounted in areas of the cabinet where sufficient space remains, such as the top, sides, or cabinet doors.
Additionally, it offers two installation methods: adhesive mounting using 3M adhesive tape and screw-based mounting. Combining these two installation methods ensures it can be securely fixed within the energy storage cabinet, minimizing the risk of loosening.
This product is compact in size, measuring 90 x 72 x 46 cm, and is therefore typically used in small-scale energy storage cabinets.
Additionally, it can be installed in the following locations:
- Electrical cabinet.
- Control panel.
- Powder distribution cabinet.
- Meter box.
- Machinery and vehicle engines.
The specific installation location should be determined based on the available space.
We are always happy to assist you with any enquiries regarding this product.
Before using, installing, or commissioning this product, please carefully read the installation manual or watch the installation video.
The temperature of the shell is relatively high after the product is sprayed, so please do not touch the shell after the product is discharged, and you need to wait for the shell to cool down before removing it.
